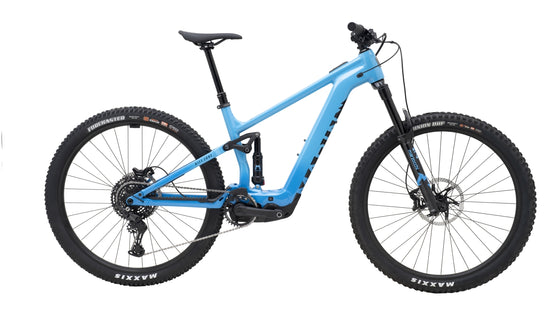

MARIN Rift Zone EL 1 Bosch
29% off

MARIN Rift Zone EL 1 Bosch

$4,999.00
Colour
Size

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new compact, lightweight Performance Line SX drive unit with 60 Nm of natural smooth support and CompactTube internal 400 Wh battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget its an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs. Add the optional 250 Wh range extender for an experience that blurs the line between normal and e-bike.

The Rift Zone EL1 is smartly spec'd with air-sprung Marzozzchi Bomber suspension, Shimano's stout and smooth-shifting CUES 10-speed drivetrain and powerful TRP Slate EVO 4-piston disc brakes.

NOW WITH FREE BOSCH POWER PACK 250 W/HR RANGE EXTENDER VALUED AT $890 (limited offer - while stocks last)


Key Features:

01. FRAME All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
02. FRONT SUSPENSION Marzocchi Bomber Zl 140mm Travel, 29, 110xl 5 Kabolt Thru Axle, 44mm Offset
03. REAR SUSPENSION All New Marzocchi Bomber Air Shock
04. RIM Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible
05. HUB REAR Shimano FHTCS00, 148x12 Thru Axle, Mircospline, 32H, Centerlock
06. HUB FRONT Shimano HB-TCS00, 110x10 Thru Axle, 32H, Centerlock
07. SPOKES 14g Black Stainless Steel
08. TIRES Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
09. DERAILLEUR REAR Shimano CUES RD-U6000 GS, 10-Speed
10. DERAILLEUR FRONT 0
11. SHIFT LEVER Shimano CUES SL-U6000-10R,10-Speed
12. CRANKSET e*thirteen e*spec Plus, 160mm Length, 34T
13. MOTOR Bosch Performance Line SX, 55Nm torque
14. CHAIN Shimano LG500
15. CASSETTE Shimano CS-LG300-10, 11-48T
16. BRAKES FRONT TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
17. BRAKES REAR TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
18. BRAKE LEVERS TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
19. HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5° Up, 9° Back
20. STEM Marin 3D Forged Alloy, 35mm
21. GRIPS Marin Grizzly Lock On
22. HEADSET FSA Custom Headset, Adjustable HTA Design
23. SEATPOST TranzX, YSl34 QL, Plastic lx Remote, Size S 150mm Travel, Size Mand L 170mm Travel, Size XL 200mm Travel, 34.9mm
24. SADDLE Marin Speed Concept
25. PEDALS Marin MTB Plastic
26. BATTERY Bosch 400Wh Internal
27. DISPLAY Bosch BRC3100 Systems Controller
28. SWITCH Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
29. EXTRAS e*thirteen e*Spec Chainguide
30. EXTRAS Bolt-On 12mm Thru-Axle, 17 4mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head



Additional specifications and size guide can be found here.
