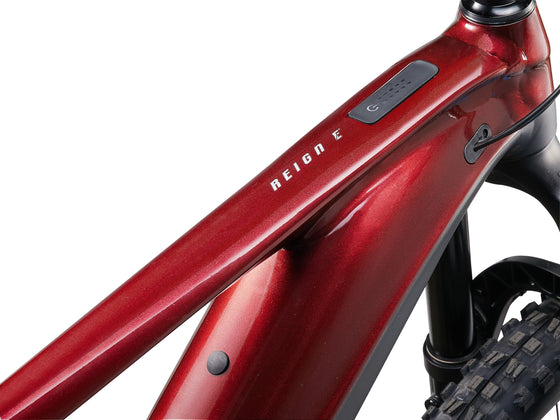

A 29-inch front wheel and 27.5-inch rear wheel work together to offer superior handling and agility on technical terrain. The updated frameset features new geometry with a shorter rear end and longer reach. New control units include RideControl Go, which is integrated into the top tube, and RideControl Ergo 3, attached to the handlebar near the grip. A new flip chip feature lets you adjust frame geometry for riding style and terrain.
-
Motor

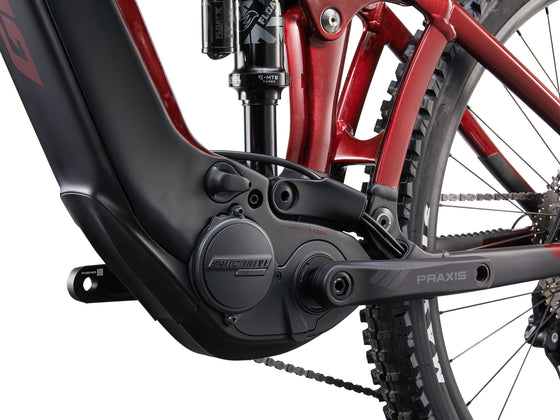

SyncDrive Pro 2, 85Nm, powered by Yamaha
-
Controller
RideControl Ergo 3, grip integrated
-
Display
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
-
Battery
EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
-
Charger
EnergyPak 6A smart charger
-
Connectivity
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
-
Sizes
S, M, L, XL
-
Colors
Sangria / Black
-
Frame

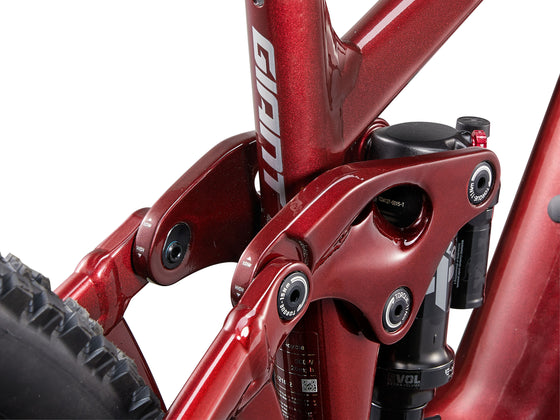

ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
-
Fork

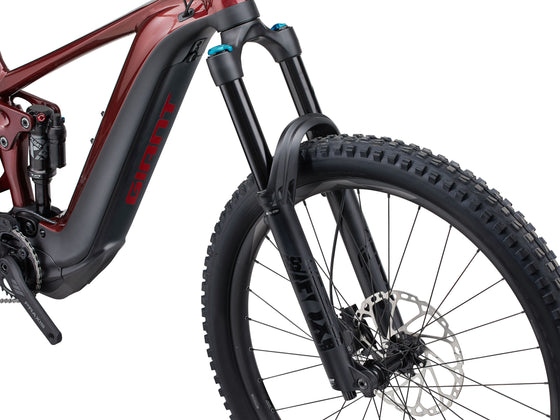

Fox 38 Rhythm E-Tuned, 170mm travel, 44mm offset, Grip VVC damperBoost Kabolt-X 110x15mm
-
Shock
Fox Float X Performance, EVOL Large Volume sleeve, custom tuned
-
Handlebar
Giant Contact Trail, 35mm
-
Stem
Giant Contact SL 35mm S:40mm, M:50mm, L:50mm, XL:60mm
-
Seatpost
Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 17
-
Saddle
Giant Romero Trail
-
Pedals
Platform
-
Shifters
Shimano CUES, SL-6000, 1x11
-
Front Derailleur
MRP 1X HD2 custom co-moulded chain guide
-
Rear Derailleur
Shimano CUES, U6000, Shadow+
-
Brakes
Shimano Deore BR-M6120, 4-piston, hydraulic disc, [F] 220mm, [R] 203mm
-
Brake Levers
Shimano Deore BL-M6100 , I-spec EV
-
Cassette
Shimano Cues CS-LG400-11, 10-50T, 11-speed
-
Chain
Shimano Cues CN-LG500
-
Crankset
Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
-
Rims
-
Giant AM 29"[F] 27.5"[R], Tubeless ready
-
Hubs
Shimano MT410 Boost, Center-Lock
-
Tires
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
-
Extras
Tubeless kit (liquid, valves, levers)
-
Lock
Torx 25 Battery Lock with built-in Torque limiter
